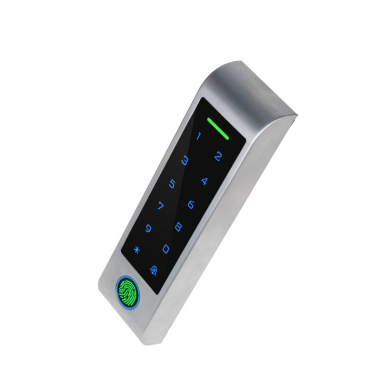

MK-V1 is a standalone access control device made of zinc alloy with an IP65 protection
rating, ensuring the device operates round-the-clock in all weather conditions.
MK-V1 offers verification methods including RFID cards, PIN codes and fingerprint.
It supports RFID card granting more flexibility for access control function.
Moreover, MK-V1 is a powerful access control device that offers a variety of features,
including remote control via Wi-Fi and Bluetooth connection to the ZSmart mobile app.
This allows authorized users to unlock doors from anywhere, making it ideal for businesses
with multiple locations or for those who need to access their facilities remotely.
| Fingerprint Capacity | 100 |
| Card Capacity | 888 |
| Transaction | 1000 |
| Operating System | Linux |
| Hardware | CPU: CKSF030 RAM: 8KB; ROM: 64KB Touch Keypad: 12 Keys |
| Communication | Wi-Fi (IEEE802.11n/b/g) @ 2.4 GHz Bluetooth: BLE5.0 Wiegand (Input & Output)*1 |
| Access Control Interface | Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1 |
| Protection Level | IP66 |
| Power | Voltage: DC 12-18V Current: Max. 3A |
| Working Humidity | 0% to 98% |
| Working Temperature | -20°c to 60°c |
| Dimensions (W*H*D) | 165 mm*44 mm*22 mm (L*W*H) |
| Supported Software | ZK ZSmart App |
