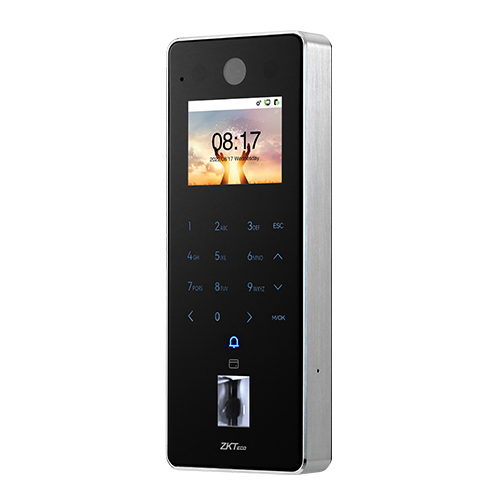

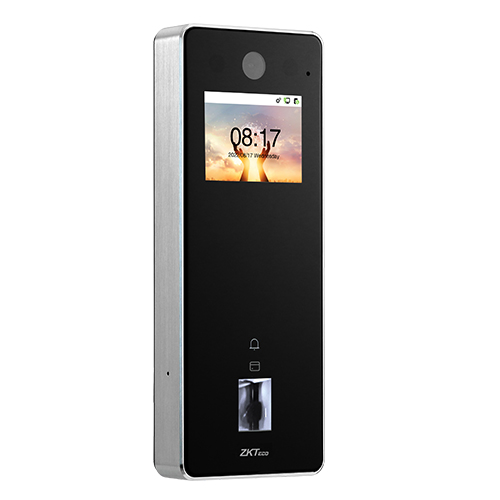

The F35 from ZKTeco is a standalone access control terminal featuring video intercom functionality. One of the notable features of the F35 is that it has a 2.4-inch color monitor, a 2MP camera, a built-in microphone, and speakers for two-way video intercom via indoor monitor using SIP protocol. The ZKTeco F35 supports ONVIF protocol, its firmware has AC push and can convert to TA push. The aluminum alloy frame of the F35 offers robust protection, and it attained an IP65 protection rating, allowing the terminal to operate in harsh weather conditions.
The F35 can work with slave readers like the ZKTeco FR1500 and the F12 to add more security to your access points.
| Display | 2.4″ TFT Color LCD Screen |
| Fingerprint Capacity | 10 000 |
| Card Capacity | 10 000 |
| Transaction | 500,000 |
| Operating System | Linux |
| Function | Webserver, ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Tamper Switch Alarm, Video Door Phone |
| Communication | TCP/IP Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz Wiegand (Input & Output) RS485: ZKTeco RS485 |
| Access Control Interface | RS485 / RS485 Card Reader / Fingerprint Reader) |
| Optional Card Module | ID Card@125 kHz (Standard) Optional Multi-Tech Module: Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency) Module 2: ID & IC & DESFire EV1 / EV 2 & FeliCa & Legic & HID Prox (125 kHz & 13.56 MHz Dual Frequency) Module 3: ID & IC & DESFire EV1 / EV2 & FeliCa & Legic & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency) |
| Recognition Speed | Less than 0.3 sec |
| Protection Level | IP65, IK04 |
| Power | Voltage: DC 12V Current: Max. 3A |
| Working Humidity | 10% to 90% |
| Working Temperature | -5°c to 55°c |
| Dimensions (W*H*D) | 195 mm*75 mm*25.35 mm |
| Supported Software | ZK CVSecurity / NETREC – TREC Workforce Management Software |
